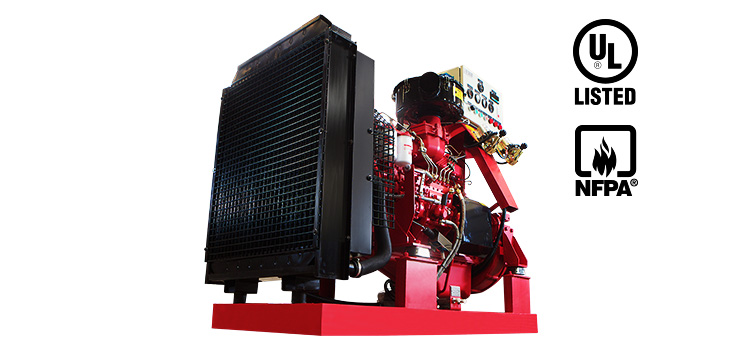

Certified Engines - Radiator Cooled
Specifications
| FD80R | FD110R | |
|---|---|---|
| Engine Power Output | 50hp | 87hp |
| Number of Cylinders | 4 | 6 |
| Lub. Oil Pressure | 0.2 to 0.4 Mpa | 0.2 to 0.4 Mpa |
| Alternator | 12v | 24v |
| Starting Motor Voltage | 12v | 24v |
| Crankshaft Idle Speed | 750-850 rpm | 750-850 rpm |
| Thermostat Opening Temp | 82°C | 82°C |
| Rated Speed | 2900 rpm | 2900 rpm |
| Self-priming | Yes | Yes |
| Aspiration | Natural | Natural |
| Engine Oil Grade | 15w 40 | 15w 40 |
Engine Rating Baselines
Engines are rated at standard SAE J 1349 testing code. Net power rating conditions are obtained at 29.61 inches Hg (100.3 kPa) barometer (approximately 300 feet or 91.44m above sea level) and 77°F or 25°C.
A deduction of 3% from engine horsepower rating at standard SAE conditions shall be made for diesel engines for each 1000ft or 305m altitude above 300ft or 91.4m
A deduction of 1% from engine horsepower rating as corrected to standard SAE conditions shall be made for diesel engines for every 10°F or 5.6°C above °F or 25°C ambient temperature.
Features
- Reliable performance
- Easily serviceable type construction
- Accurate instrumentation facilities
- Reduced noise level
- Dependable controlling systems
- Better fuel efficiency - economic fuel consumption rate
- Efficient lubrication system
- Cooling system designed for optimum heat transfer
- Air intake system constructed for efficient air supply
- Longer engine life
- Heavy duty constuction
